Оrbital stretch systems Area

The given page presents orbital stretch systems for packaging of transit cargo.

Orbital equipment is a packaging unit that evenly and efficiently wraps the products using the stretch film. The machines operate in automatic mode, they do not require the presence of an operator to control the packaging process.

You can look through our models of orbital stretch systems below, or we suggest that you contact our manager, who will assist you in the selection process of equipment suitable for your production.

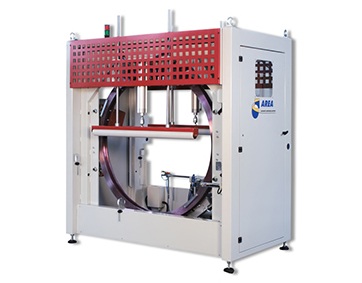

AREA RING 100

Supplier: Area

Type: orbital stretch system

Automatic horizontal packaging machine for operation with products of medium size.

Specification

• Clamping and cutting block;
• Automatic and pneumatic drive - cutting with serrated blade;
• Inlet and outlet pressure unit;
• Pneumatic power;
• Pre-stretching unit;
• Mechanical up to 100% or powered up to 300% upon request.

Specifications
Ring diameter, mm 1000 (ring 100), 1400 (ring 140)
Capacity, rpm Up to 150 (ring 100) and up to 120 (ring 140)
Heigh, mm 125-250-500 (upon request)
Inner diameter, mm 76
Outer diameter, mm 250
Electrical connection 400 V - 3 phases - 50 Hz
Pneumatic connection, bar 6

AREA RING 40

Supplier: Area

Type: orbital stretch system

The packaging system is designed for the horizontal stretch film wrapping of the longitudinal items in the automatic mode. These machines are used for wrapping of various sawn timber, metal products, and molded products. Very high speed of wrapping and submission of a product for wrapping, reliability of equipment, simplicity and convenience in operation ensured that the machines of this series have high appreciation of personnel and customers.

Specification

• aluminum ring is manufactured as one solid part;
• internal diameter is 400 mm;
• speed is up to 200 rpm;
• acceleration and braking are controlled by the frequency converter;
• movement is transmitted by a toothed belt.

Ring and carriage are made of aluminum (expensive, but durable and lightweight).
Additionally, it is possible to fit this equipment with a device concealing the face of the product with protective materials.

AREA R9.42-140/A

Supplier: Area

Type: orbital stretch system

The machine is designed for wrapping longitudinal loads with the stretch film. Owing to the geared motor system, the device continuously wraps products of different sizes.

Specification

• Automatic feeding;
• Integrated adjustable speed conveyor;
• User-friendly control panel with buttons and symbols;
• Contacts for interfacing with the customer's supply and discharge devices;
• Low maintenance costs;
• Reliable and proven design using high-tech materials;
• Machine, film and maintenance included.

Before starting work, the operator has to set the control parameters and select the type of film, which he will have to operate with. When the tension force and the number of layers have already been selected, the operation process may begin. The cargo is placed on the assembly line and slowly enters the winding ring. Further, the side plates securely fix the product, and the compactor presses the product from above.

This function helps to strengthen the film and protect the cargo during transportation. At the end of the wrapping, the product is being moved along a conveyor belt and is stacked onto the pallet.

Specifications
Diameter, mm 420, 620, 1000, 1400
Bobbin dispenser Mechanical braking
Film width, mm 125, 250
Inner diameter of the sleeve, mm 76
Rotation technology, mm Gear motor system
Speed ​​regulation Inverter
Max. rotational speed, rpm 90/40
Automatic navigation Photocell for starting and stopping the cycle
Power supply 230 V, 50 Hz
OP panel Integrated into the machine body
Clamping device Special unit with pneumatic cylinder
Air pressure, bar 6

AREA R9.42-140

Supplier: Area

Type: orbital stretch system

Semi-automatic equipment for packaging products in the stretch film.

Specification

• Machine equipped with a blade can be installed at a floor level;
• The same high-quality film tension even with different cargo widths;
• User-friendly control panel with buttons and symbols;
• High reliability;
• Low maintenance costs;
• Reliable and proven design using high-tech materials;
• Machine, film and maintenance included.

The operator adjusts the parameters of the device and checks the presence of the wrapping stretch film inside of the mechanism. When the indicators are normal, he submits the product on the rollers and presses the pedal to start the operation of the metal ring.

After packaging the product, the film adheres tightly to the product under the pressure of an additional compactor. The sharp blade accurately cuts the film and the warehouse operator fixes the end of the tape. Afterwards, the product is stacked on a pallet and delivered to the end-point.

Specifications
Diameter, mm 420, 620, 1000, 1400
Bobbin dispenser Mechanical braking
Film width, mm 125, 250
Inner diameter of the sleeve, mm 76
Rotation technology, mm Gear motor system
Speed ​​regulation Inverter
Max. rotational speed, rpm 90/40
Automatic navigation Photocell for starting and stopping the cycle
Power supply 230 V, 50 Hz
OP panel Integrated into the machine body
Clamping device Special unit with pneumatic cylinder
Air pressure, bar 6

Related materials

“Skladpack” company supplies a wide range of packaging materials. Only the best packaging materials meeting the international quality standards can be ordered from us.

We are happy to present one more partner of “Skladpack” — Area company. It is an Italian manufacturer of industrial packaging equipment. It has been operating since 1999 and every year it only expands its range of influence. Over the years, owing to the great commitment and continuous development, it has taken the leading position in the manufacturing of horizontal axis stretch film wrapping machines.

Area works primarily with those sectors where it is required to pack long products. Therefore Area is the ideal partner for the wood sector (furniture and panels), steel (pipes and sheet metal), construction (solar panels), aluminum (profiles) sectors and many others.

In order to continuously work with the unit, it is necessary to ensure the presence of packaging materials (stretch film) inside of the mechanism. It’s necessary to confirm that the equipment is firmly fixed to the surface. The principle of operation is simple: the operator presses the launch pedal and activates the mechanism. The product moves along rollers to the center of the orbital ring, which a roll with stretch film is fixed to.

The ring rotates around the product and evenly covers its surface with a film. This helps to seal, pack products and reliably protect them from possible damage during transportation. The drive side plates fix the position of the elongated article, so the packaging is carried out efficiently.
